Installing Additional OZW Adapters on the Same PC

Each adapter requires a private set of configuration files. To add additional adapters you need to manually copy and register a new set. Proceed as follows.

  1. In the Windows installation folder, copy and paste a new C:\Program Files (x86)\Siemens\OZW Adapter_n, with „n“ being the the adapter number.
  1. In the OZW_Adapter folder, copy and paste a new Install_AdapterAsService_HTTP_n batch file (or Install_AdapterAsService_HTTPS_n, if you want to use the HTTPS protocol).
    The original HTTP file contains:
    Siemens.GMS.OZWAdapter.exe –service –port:8080
  • Add the ServiceName: Siemens.OZW-Adapter_n, with „n“ being the the adapter number.
  • Add a new port (for example, 8081 for the second adapter, 8082 for third adapter, and so on).
  • Add a new wsport (for example, 8006 for the second adapter, 8007 for third adapter, and so on).
    Examples for HTTP service 2 and 3:
    Siemens.GMS.OZWAdapter.exe –service –ServiceName:Siemens.OZW-Adapter_2 –port:8081 –wsport:8006
    Siemens.GMS.OZWAdapter.exe –service –ServiceName:Siemens.OZW-Adapter_3 –port:8082 –wsport:8007
  1. Run the new batch file to register and start the service.

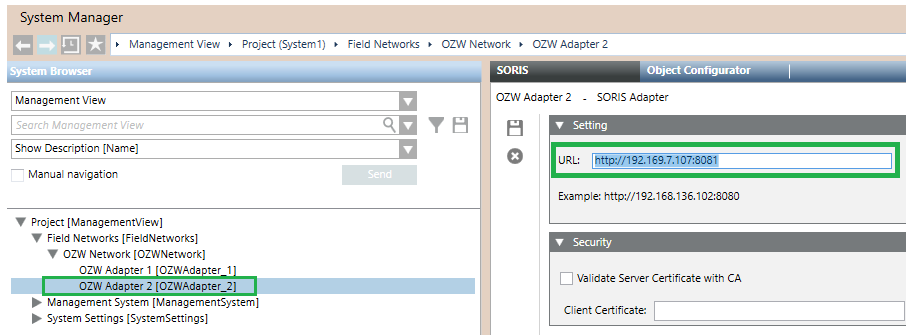

  1. In Desigo CC, in the URL field of the SORIS Adapter configuration, use the same IP address and the specific port according to the configuration defined for each adapter. For example: http://192.168.7.101:8081
    NOTE: The additional adapters can be configured either under the same SORIS network, as in the example below, or under separate SORIS networks.
