Configure a C# Adapter with HTTPS and WSS

To setup a C# Adapter with HTTPS and WSS, complete the following procedures:

Create a Self-Signed Server Certificate
  1. Run the following command to create the Root Authority:

    makecert -r -n "CN=SORIS Root Certificate" -pe -sv SORISRootCert.pvk -a sha1 -len 2048 -b 01/01/2015 -e 01/01/2030 -cy authority SORISRootCert.cer

    Enter a password three times. The password is needed for the next step.
  1. Run the following command to create the Self-Signed Server Certificate:

    makecert -ic SORISRootCert.cer -iv SORISRootCert.pvk -pe -sv SORISServerCert.pvk -a sha1 -n "CN=SORISServerCert" -len 2048 -b 01/01/2015 -e 01/01/2030 -sky exchange SORISServerCert.cer -eku 1.3.6.1.5.5.7.3.2

    Enter a new password three times for the certificate. The password is needed for the next step. When asked for Issuer Signature, type the password from Step 1.
  1. Run the following command to create the PFX Key:

    pvk2pfx -pvk SORISServerCert.pvk -spc SORISServerCert.cer -pfx SORISServerCert.pfx

    Enter the password from Step 2.



Install the Server Certificate
  • You want to install the SORISRootCert.cer file and the SORISServerCert.pfx file to the Microsoft Management Console.

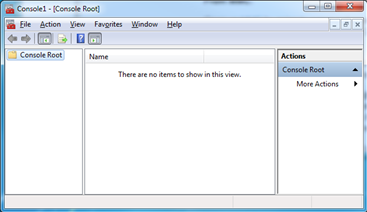

  1. To launch Microsoft Management Console, click Start.
  1. In the Search field, enter mmc, and in the Programs section, click mmc.exe.

  1. Click File > Add/Remove Snap-in.

  1. Select Certificates from the list on the left, and then click Add.
    The Certificates snap-in dialog box displays.

  1. Select Computer account, and then click Next.
  1. Select Local computer, and then click Finish.

  • The certificate is added to the Selected snap-ins pane.
  1. Click OK.
  1. Expand the Certificates branch and select Personal.

  1. Click Action > All Tasks > Import.

  1. Click Next.
  1. Click Browse.
  1. Click the file drop-down list, and select All Files.

  1. Navigate to and then select the pfx file.
  1. Click Open, and then click Next.

  1. Enter the password for the pfx file, and then click Next.
    NOTE: If you created the pfx using the self-signed procedure, the password field is blank, and you can leave it blank.

  1. Place the certificate in the Personal certificate store.

  1. Click Next, and then click Finish.
    The Certificate displays in Certificate > Personal > Certificates.

  1. Repeat Steps 8 – 17 to install the SORISRootCert.cer file in the Trusted Root Certificate Authorities > Certificates folder.

  1. To copy the certificate Thumbprint, double-click the certificate you just installed.
    The Certificate window displays.

  1. Click the Details tab, and then find and select Thumbprint in the Field column.

  1. Copy and Paste the Thumbprint into a text editor and remove white spaces.

    NOTE: depending on how the Thumbprint is copied, there may be a whitespace at the beginning of the string. If there is, you should remove it.

    Example of copied Thumbprint:
    ‎09 36 56 9c 2d c6 31 94 e6 3b 1a bd 71 b2 c4 f1 9c 03 0b 14

    Example of Thumbprint with white spaces removed:
    0936569c2dc63194e63b1abd71b2c4f19c030b14

    NOTE: You will need to use the thumbprint in two separate locations to configure HTTPS and WSS.



Register the HTTP Port for HTTPS Security
  • The certificate is installed on the computer, and you need to register the communication port with the certificate for HTTPS security.
  1. Launch the Command Prompt with Administrative Privileges.
  1. Run the following NetSH command to register the port that is being used by the SORIS Adapter.
    NOTE: When the SORIS adapter is first started, it lists the IP address and Port being used. If the adapter needs to validate client certificates for added security (see Configure a C# Adapter to Accept Client Certificates for more details), then the Client Certificate Negotiation option needs to be enabled with netsh.

    With Client Certificate Negotiation:
    netsh http add sslcert ipport=0.0.0.0:PORT_# certhash=COPIED_THUMBPRINT appid={00112233-4455-6677-8899-AABBCCDDEEFF} clientcertnegotiation=enable

    Without Client Certificate Negotiation:
    netsh http add sslcert ipport=0.0.0.0:PORT_# certhash=COPIED_THUMBPRINT appid={00112233-4455-6677-8899-AABBCCDDEEFF}

    Example:
    netsh http add sslcert ipport=0.0.0.0:8080 certhash=99ecdbd25d2c6c9260b7da17e9934721e9095480 appid={00112233-4455-6677-8899-AABBCCDDEEFF} clientcertnegotiation=enable
  1. To verify that the Port is registered, run the following command:

    netsh http show sslcert ipport=0.0.0.0: PORT_#
  1. To remove the Port registration, run the following command:

    netsh http delete sslcert ipport=0.0.0.0: PORT_#



Configure the WebSocket to Use WSS (TLS) Security
  • You want to configure the WebSocket to use the security certificate for WSS (TLS) communication.
  • The certificate is installed on the computer, and you want to bind the WebSocket using the Thumbprint from the Installing the Certificate section.
  1. Do one of the following:
  • In the SmartDeviceAdapter.cs file, navigate to the CustomAdapterSettings method.
  • Search for “#TODO: WSS SECURITY”.
  1. Add your certificate Thumbprint, as shown in the following example:



Start the Adapter in Secure Mode
  • Run the adapter with the -secure flag
    Example: Adapter.exe –secure



Stop the SORIS Driver
  1. In System Browser, select Management System View.
  1. Depending on where the SORIS Driver is located (Desigo CC server or FEP station), select one of the following:
  • Project > Management System > Servers > Main Server > Drivers [name of driver]
  • Project > Management System > FEPs > [FEP station] > Drivers [name of driver]
  1. Click the Extended Operation tab.
  1. In the State property, click Stop.
  • The SORIS driver stops.
