Display Floor Information

Prerequisites:

• System Manager is in Operation mode.
• In System Browser, Logical View is selected. BIM graphics can also be selected in the Application View as an alternative.

Floor Overview: Alarms

1. Select Logical > [Subsystem name] > [Building name] > [Floor].

• The BIM Viewer tab opens.

2. Click Show room alarms .

3. Click Show related alarms in EventList .

• The event list is filtered and displayed with the floor alarms.

4. Acknowledge and reset alarm.

5. Click Close event list .

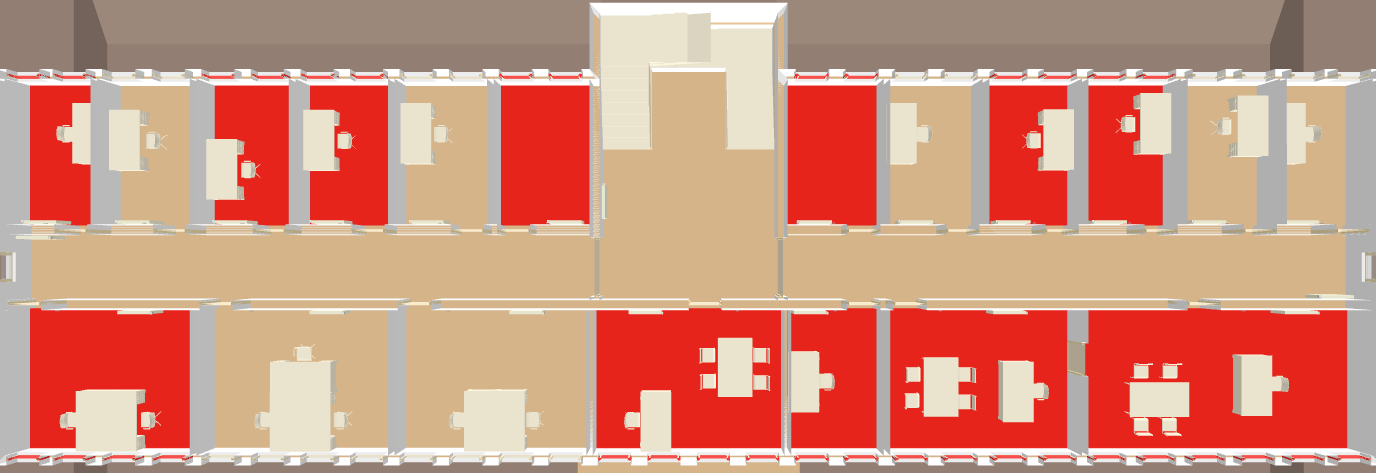

• Alarms are displayed in the corresponding color for the alarm category color in the floor overview graphic.



Floor Overview: Temperature

1. Select Logical > [Subsystem name] > [Building name] > [Floor].

• The BIM Viewer tab opens.

2. Click Show room temperature .



Floor Overview: Open Windows

1. Select Logical > [Subsystem name] > [Building name] > [Floor].

• The BIM Viewer tab opens.

2. Click Show window states .



Floor Overview: Room Air Quality

1. Select Logical > [Subsystem name] > [Building name] > [Floor].

• The BIM Viewer tab opens.

2. Click Show room air quality .



Floor Overview: Room Humidity

1. Select Logical > [Subsystem name] > [Building name] > [Floor].

• The BIM Viewer tab opens.

2. Click Show room humidity .



Floor Overview: Room Occupancy

1. Select Logical > [Subsystem name] > [Building name] > [Floor].

• The BIM Viewer tab opens.

2. Click Show room occupancy .



Floor Overview: Lighting

1. Select Logical > [Subsystem name] > [Building name] > [Floor].

• The BIM Viewer tab opens.

2. Click Show room lighting state .



Floor Overview: Blinds

1. Select Logical > [Subsystem name] > [Building name] > [Floor].

• The BIM Viewer tab opens.

2. Click Show blinds state .



Display 2D-Floor View

• The view is only available if the graphic pages are generated from the BIM data.

1. In System Browser, select Application View.

2. Select Applications > Graphic > [graphics page].

• The Default tab displays.

3. Select the appropriate rooms.
