Display Building Information

Prerequisites:

• System Manager is in Operation mode.
• In System Browser, Logical View is selected. BIM graphics can also be selected in the Application View as an alternative.

Building Overview Alarms

1. Select Logical > [Subsystem name] > [Building name].

• The BIM Viewer tab opens.

2. Click Show room alarms .

3. Click X-ray view .

• X-ray view also displays alarm inside the rooms.

4. Click Show related alarms in EventList .

• The event list displays.

5. Acknowledge and reset alarm.

6. Click Close event list .

• Alarms are displayed in the corresponding color for the alarm category color in the building overview graphic.



Building Overview: Temperature

1. Select Logical > [Subsystem name] > [Building name].

• The BIM Viewer tab opens.

2. Click Show room temperature .



Building Overview: Open Windows

1. Select Logical > [Subsystem name] > [Building name].

• The BIM Viewer tab opens.

2. Click Show window states .





Building Overview: Room Air Quality

1. Select Logical > [Subsystem name] > [Building name].

• The BIM Viewer tab opens.

2. Click Show room air quality .





Building Overview: Room humidity

1. Select Logical > [Subsystem name] > [Building name].

• The BIM Viewer tab opens.

2. Click Show room humidity .





Building Overview: Room Occupancy

1. Select Logical > [Subsystem name] > [Building name].

• The BIM Viewer tab opens.

2. Click Show room occupancy .

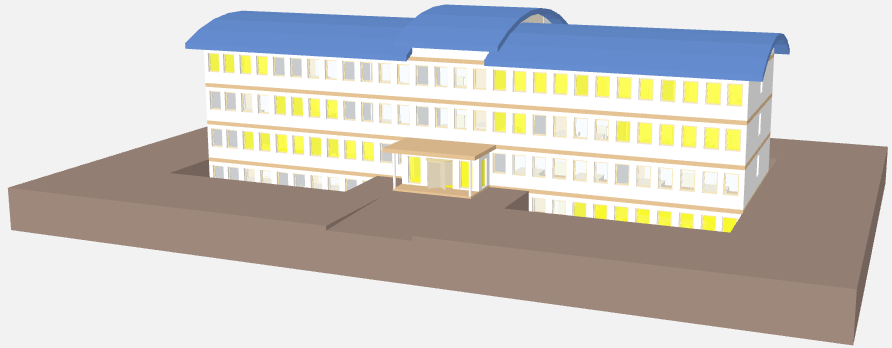

Building Overview: Lighting

1. Select Logical > [Subsystem name] > [Building name].

• The BIM Viewer tab opens.

2. Click Show room lighting state .





Building Overview: Blinds

1. Select Logical > [Subsystem name] > [Building name].

• The BIM Viewer tab opens.

2. Click Show blinds state .
