OZW Graphic Templates

The following graphic templates are provided with the installation of the OZW extension.

Fault Actual

It shows the current fault conditions (up to 10 events) for the selected object. A title line at the top of the page shows the represented type of condition. At the bottom, two control commands are available, to acknowledge and delete the pending events.

Example of OZW Fault Actual



Fault Historical

It shows the past (deleted) fault conditions (up to 10 events) for the selected object.

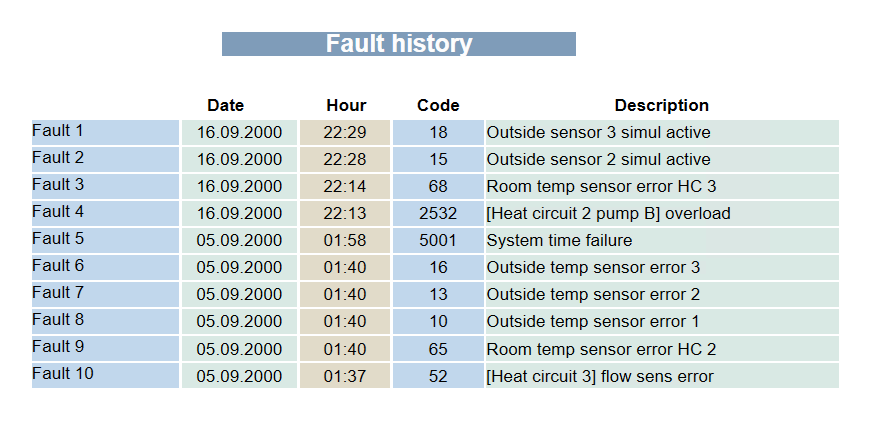

Example of OZW Fault Historical



Calendar

It shows the Mode selection for as many as 16 time periods, organized in two columns.

Example of OZW Calendar

You can Copy and Paste the entire calendar settings from one object to another. The default display is View, and you can click Edit to modify the settings. Then, click Check to verify the change (check the Active flag), and finally Apply.
NOTE: When you select an object in System Browser, the same commands are available in the Extended Operation tab.

OZW Calendar Commands



Scheduler BW

Scheduler HVAC

Scheduler Jalousie

Scheduler On Off

Scheduler Scene

This template is available in different variants related to the Mode states of different objects. The functionality is the same for all of variants and shows the Mode selection for a typical week (five weekdays Monday to Friday, Saturday and Sunday) and one special day.

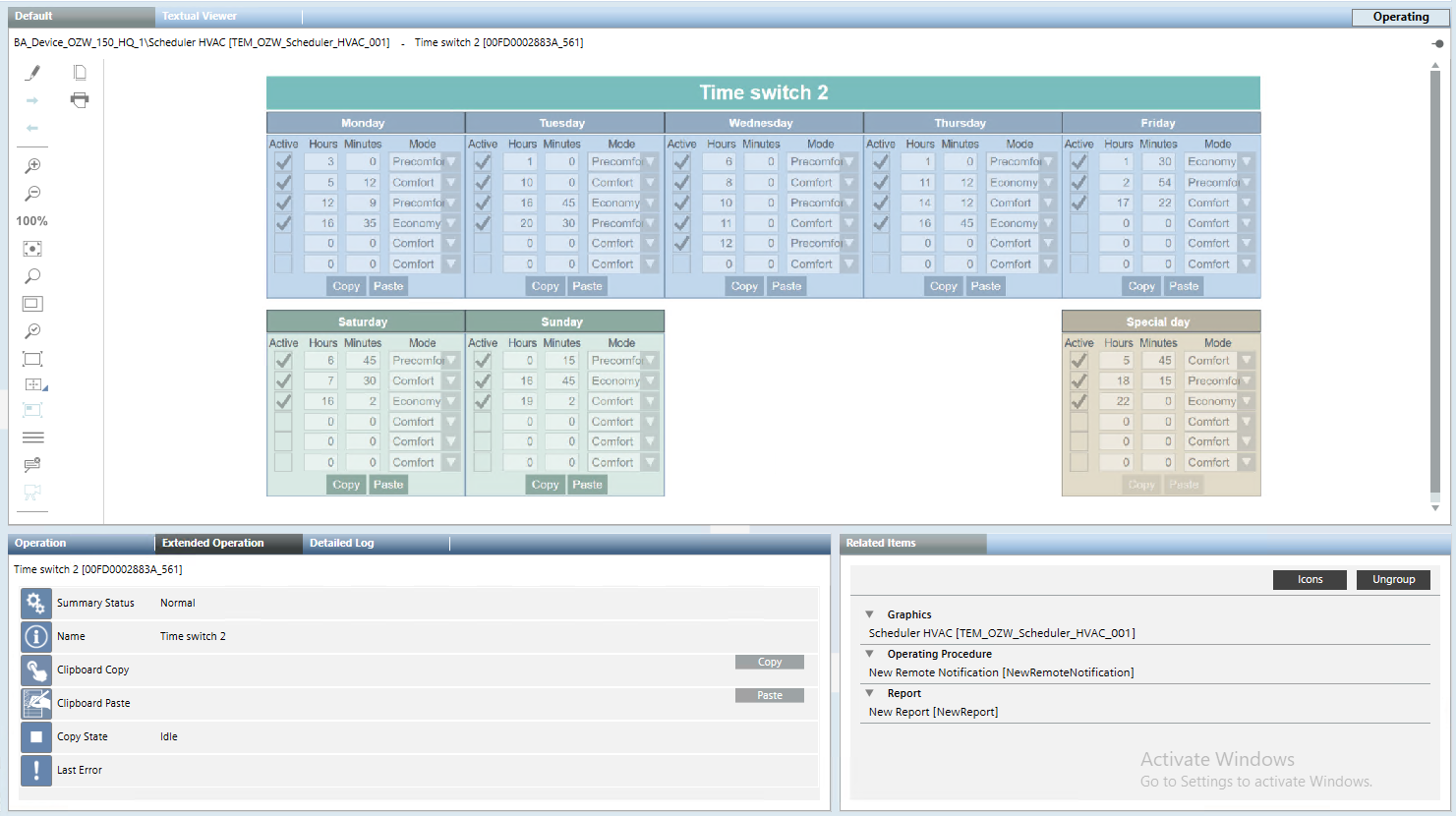

Example of OZW Scheduler

You can Copy and Paste the entire week schedule or individual days. To do this, proceed as follows:

  • Select the main title to operate at week level, and then use the commands in the Extended Operation tab. You can Copy the schedule from one object, then select another object and Paste the content into it. In case of error, check the Last Error condition in the Extended Operation tab.
  • Select the day title to operate at day level. In this case you can use the commands in the graphic or the Extended Operation tab.
OZW Scheduler Commands
