Introduction



System Topology

The system offers a wide range of topologies, so that it can be adapted to an unlimited number of individual requirements. For this reason, this document only provides a description of a general system topology. The topology is valid for Desigo version 6.3.

Desigo Building Automation and Control System Topology



Terms Used

Term

Description

Application structure

The Desigo Automation application structure has changed for Desigo Version 6 versus Desigo Version 5.1. The management platform supports both versions, but the graphical display of the rooms is different.

Application modeling

An object with the associated subobjects to display a room in Desigo Automation Version 6. Use only on the management platform. It can be modified for a project.

Compatibility list

Compatibility overview

Topic

Detail description

Version

Support

BACnet protocol

BACnet protocol revision

<1.13

Yes

1.15

Yes

>1.15

No

Desigo PXC3

Automation station

Firmware 1.15

No

Firmware 1.16 / 1.20 / 2.10

Yes

Desigo PXC4

Automation station (exported as s1x export file)



Yes

Desigo PXC5

Automation station (exported as s1x export file)



Yes

Desigo DXR1

Automation station (exported as s1x export file)

SVS300.6

Yes

Desigo DXR2

Automation station (exported as s1x export file)

Firmware 1.20 /1.21

Yes

RDS110.R

Smart Thermostat (exported as s1x export file)



Yes

EV-100.E

Intelligent Valve (exported as s1x export file)

Firmware 1.13

Yes

Desigo V5.1

Exported as s1x export file

ABT Tool V1.1 (PXC3 FW 1.16)

Yes

Desigo V6

Exported as s1x export file version 5.1
(cannot be imported to Desigo CC V2.0)

ABT Tool V1.2 (PXC3 FW 1.16)

Yes

As updated s1x export file, version 6, exported using the application architecture for version 5.1

ABT Tool V1.2 (PXC3 FW 1.20)

Yes

As s1x file, version 6, exported using the new application architechture for version 6

ABT Tool V1.2 (PXC3 FW 1.20)

Yes

Desigo V6.1

Exported as s1x export file

ABT Tool 3.0 (PXC3 FW 1.21)

Yes

Desigo V6.2

Exported as s1x export file

ABT Tool 3.2 (PXC3 FW 1.21)

Yes

Desigo V6.3

Exported as s1x export file

ABT Tool 4.0 (PXC3 FW 1.21)

Yes

Exception list of functions in Desigo devices

The list describes the functions from Desigo devices that are partially handled in a different manner from the point of view of Desigo CC.

Desigo automation stations

Detail description

Version

Support in Desigo CC



BACnet IP automation stations

>=2.37

Yes

BACnet IP Automation Station (LON over router PXG3.L=

<5.0

No

Creating and delete dynamic BACnet object

>=5.0

Yes

BACnet backup and restore

<4.0

No

>=4.0

Yes



What

iValve

Smart

Thermostat

DXR1

DXR2

PXC3

PXC4
PXC5
PXC7

Create dynamic BACnet objects

No

No

No

No

No

No

Support for BACnet backup & restore

No

No

No

Yes

Yes

Yes

Edit scheduler

No

Yes

No

Yes

Yes

Yes

Can server as time master on the network

No

No

No

No

No

Yes

Discovery as Desigo device (without changes)

No

No

No

No

No

Yes

Discovery as third-party BACnet device (no proprietary properties)

Yes

Yes

Yes

Yes

Yes

Yes

Event enrollment alarms

No

No

No

Yes

Yes

Yes

Intrinsic alarms

No

No

No

No

No

Yes

Common alarm acknowledgment

No

No

No

Yes

Yes

Yes

Support for room & segment

No

No

Yes

Yes

Yes

Yes

Group master for central commands

No

No

No

Yes

Yes

Yes

Group member for central commands

No

No

Yes

Yes

Yes

Yes

Import from access level 0

No

No

No

No

No

No

Import from access level 1…5

No

No

No

No

No

Yes

Import from access level 6+7

Yes

Yes

Yes

Yes

Yes

Yes

Multiple Languages for Data Import

Automated support for multiple languages is based on the project settings on the System Management Console. The associated languages are imported during import if a project is set up as multilingual. The requirement is that engineering was conducted using SDU standard texts (The System Definition Utility is the tool for creating meta data).

The following example illustrates a standard solution in various languages in the System Browser.

Project with four Languages

English

German

French

Russian

NOTES:
− During data import, the period is converted to an underscore; a period is not permitted in the description text.
− Project-specific data point texts, for example: Northeast wing cannot be automatically translated. These texts must be translated after the fact using the object configurator.
− Always create a project with an additional language. This permits you to use it as a multilingual project at a later date.



Supported BACnet Object Types

Object Types

Exported BACnet object types associated with a Desigo automation station:

  • Automation Station (Devices): Controls system components and equipment controllers. An automation station samples and processes field data, initiates control actions, communicates with its operators, and generates reports, displays, and warnings.
  • Commands (CMD): An object that writes to a group of object properties through action code(s) inside the Present_Value property. The Command object starts a sequence of actions in the BACnet devices during this write action.
  • Event Enrollment (EE): The management of events for a BACnet system. Events are changes in the value of any property concerning any object that meets specific criteria. Compiles individual event enrollment alarms as a system alarm.
  • I/O Objects:
    • Inputs: The input block acquires a value from an external data source and converts it to a process value
    • Outputs: The output block calculates the present switching value from several, prioritized setpoints (priority array) and transmits the switching value to an external data.
  • Loop (LOOP): The Loop block is a universal PID controller (P, PI, PD, or PID), with external tracking. It supplies a modulating manipulated variable.
  • Schedules: Acts as a bridge between scheduled times and dates, and the writing of certain values to specific properties and objects concerning the schedule.
  • Trend Logs (TLOG): Monitor a property for a specific object. When certain conditions are reached, a log is produced with the property value and a date/time stamp which is placed into a buffer for future retrieval.
  • Object structure view: Is needed to display underlying objects in a defined hierarchy.

Dynamic objects

Dynamic objects are not supported on PXC3, PXC4, PXC5, and DXR automation stations.



Hierarchies/Views

BACnet objects are depicted hierarchically per the various views:

  • Logical View: Displays BACnet data points, aggregators and subpoints that are in the database. The visual layout of these objects is based on the point naming convention (technical designation) of the object.
  • User View: Displays the objects as per the user designation of the company. Only objects with a user designation (UD) are displayed. This view is optional and can be populated at import time.
  • Application View: Displays various applications, for example, central functions, scheduler, reports, documents, trends, etc.
  • Management View: Displays the system view for networks, management functions (servers, drivers), system settings (libraries, security, users) and all data points on one device.
  • User View: Displays the customized views of objects or functions using views. Multiple views can be created.

Various views of objects and functions

Logical

Application

Users

Based on the customer's user name structure.

Management

User defined



Structure depend of the project definition.



Import Data

The Desigo Automation program data can be imported by an offline or online data import to the project.

NOTE:
The management platform periodically checks the consistency of the system information against information from room automation station. In the event of an inconsistency, you must conduct an offline data import.

Offline data import

You use a file from ABT Site for the import function. This is the typical procedure for new contracts where all preparatory work – creating graphics, setting up networks, etc. – is done prior to going to the actual site (offline commissioning).

Online Data Import

An Online data import is supported by most Desigo automation stations. The appropriate field network must be selected. In the Network devices tab, all the discovered Desigo automation stations can be imported online.

Auto Discovery

The Desigo automation station does not support the Auto-Discovery function.

BACnet Backup and Restore

BACnet Backup and Restore uploads saved program data (application program) for a BACnet device to the management platform and then restores it as needed to the same or a new BACnet device.



Alarm Response for Different Versions

Version 5.1

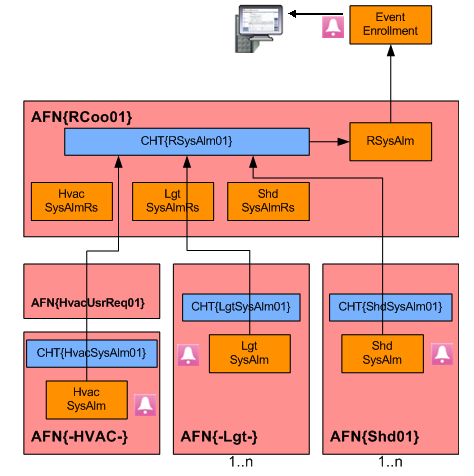

One common alarm per room is evaluated to keep the number of system alarms to a minimum. Room coordination records the state information (Normal/Alarm) of each zone and all electrical and mechanical installations and determines from them the room-wide alarm state as a common alarm. The alarm is evaluated on the Desigo PX automation station. The actual automation station has no alarmable objects.

HVAC application

Light

Shading

Version 6

Event Enrollment (EE) as a component of the Desigo automation station as of Version 6. The application is designed for the following objects to send an alarm to the management platform in the event of a fault:

  • Automation Station
  • I/O bus
  • KNX PL-Link bus
  • Room
  • Segment
Alarm Concept with Event Enrollment (EE)

Alarm monitoring occurs in various ways depending on the hardware in use. Alarming and alarm acknowledgement are, however, the same for the user.

Alarm Concept on Different Devices
Template Project Information

User Groups in the Template Project

The following user groups are predefined in the system and cannot be changed:

  • DefaultAdmins
  • DefaultUsers
  • FallbackPolicy
  • OPCGroup

The template project contains the following preconfigured user groups and rights. They can be changed, deleted, or extended by new user groups:

  • Administrators
  • Engineering
  • Maintenance Grp
  • Operators Grp 1
  • Operators Grp 2
  • Operators Grp 3

Scope Rights

Scope rights define what a user can display or command in his or her project. The template project sets discipline, subdiscipline, object type, and object subtype to All. The write rights (W) and read rights (R) are configured differently and described in the following tables.

Scope rights of user groups: DefaultAdmins, Administrators, Engineering.

Property Groups

Command Groups

Create

Drop

Sta.

Con.

Dia.

Own

Sta.

Eve.

Adv.

Own

W

W

W

W

Yes

Yes

Yes

Yes

Yes

Yes

Scope rights of user groups: DefaultUsers, FallbackPolicy

Property Groups

Command Groups

Create

Drop

Sta.

Con.

Dia.

Own

Sta.

Eve.

Adv.

Own

R

R

R

-

No

No

No

No

No

No

Scope rights of user group: Maintenance Grp

Property Groups

Command Groups

Create

Drop

Sta.

Con.

Dia.

Own

Sta.

Eve.

Adv.

Own

W

R

R

-

Yes

Yes

No

No

No

No

Scope rights of user group: OPCGroup

Property Groups

Command Groups

Create

Drop

Sta.

Con.

Dia.

Own

Sta.

Eve.

Adv.

Own

-

-

-

-

-

-

-

-

-

-

Scope rights of user group: Operators Grp 1

Property Groups

Command Groups

Create

Drop

Sta.

Con.

Dia.

Own

Sta.

Eve.

Adv.

Own

W

R

R

-

Yes

Yes

No

No

No

No

Scope rights of user group: Operators Grp 2

Property Groups

Command Groups

Create

Drop

Sta.

Con.

Dia.

Own

Sta.

Eve.

Adv.

Own

W

R

R

-

No

No

No

No

No

No

Scope rights of user group: Operators Grp 3 (Lite user)

Property Groups

Command Groups

Create

Drop

Sta.

Con.

Dia.

Own

Sta.

Eve.

Adv.

Own

W

R

R

-

No

No

No

No

No

No



Application Rights

Application rights specify which application a user can display and configure.



Application rights of default user groups.

Key:

X = Display and configure

O = Display only

Empty = No user rights

Application

Administrator

Engineering

Maintenance

Operator Gr1

Operator Gr2

Operator Gr3

Notification > Recipient

X

X

X

O

O



Assisted Event Treatment

X

X

X

X

X



BACnet Configurator

X

X









device

X

X

O

O

O



Document Configurator

X

X

X

X

X



Document Viewer

X

X

X





O

Driver

X

X









Graphic editor

X

X

X







Graphic Library Editor

X

X









Graphics Viewer

X

X

X

X

X

O

Symbols

X

X









Import rules

X

X









Data import

X

X









Journaling printers

X

X

X

O

O



Library

X

X









License

X

X









Log Viewer

X

X

X

O

O

O

Macro

X

X

X

O

O



Network

X

X

O

O

O



Object Configurator

X

X

O







Operating Procedure

X

X

O

O

O



Reactions

X

X

O

O

O



Notification

X

X

O

O

O



Reports

X

X

X

O

O

O

Schedules

X

X

X

X

X



Scopes

X

X









Safety & Security

X

X









Sessions

X

X









System Management

X

X









Text Groups

X

X









Trends

X

X

X

X

X

O

Manual Trend Correction

X

X









Users

X

X









Video Display

X

X









Video wall

X

X









Video Configurator

X

X









Video PTZ

X

X









Views

X

X









View Configurator

X

X









User Profile in the Template Project

The following users are predefined in the system and cannot be changed:

Preconfigured System Users

Users

Password

User Group

Client Profile

DefaultAdmin



DefaultAdmins

Default

GmsDefaultUser



DefaultUsers

Default

root





Default

User Profile Response between Server and Client

The user profile specifies the number of alarm buttons in the Event bar. The corresponding discipline profiles as well as the default profile can be selected from the template project. The user profile can be defined in the server or at the corresponding user, whereby the server has higher priority (see table below).

User profile settings.

Servers

Users

Used actively

empty

Default

Default

empty

BA_EN

Default

Default

Default

Default

Default

BA_EN

Default

BA_EN

BA_EN

BA_EN

BA_EN

Default

BA_EN

List Sequence on the Lite User Interface

The list sequence determines the sequence of the symbols on the lite user interface.

List sequence

Number

Application

Comment

0



Alphabetical sequence within the same value

0001

Graphic



0100

Subsystem schedules

Must be configured

0200

Subsystem calendar

Must be configured

0400

Subsystem trends

Must be configured

0700

Trend definition

Disabled by default

0800

Log Viewer

Disabled by default

0900

Report definition

Disabled by default

1000

Documents

Disabled by default

1200

RENO recipient

Disabled by default

1300

RENO procedures

Disabled by default
