Icons Library

Icons is the library block that collects the icon images used in a system library. The supported file formats are BMP, JPG, PNG, and XAML.

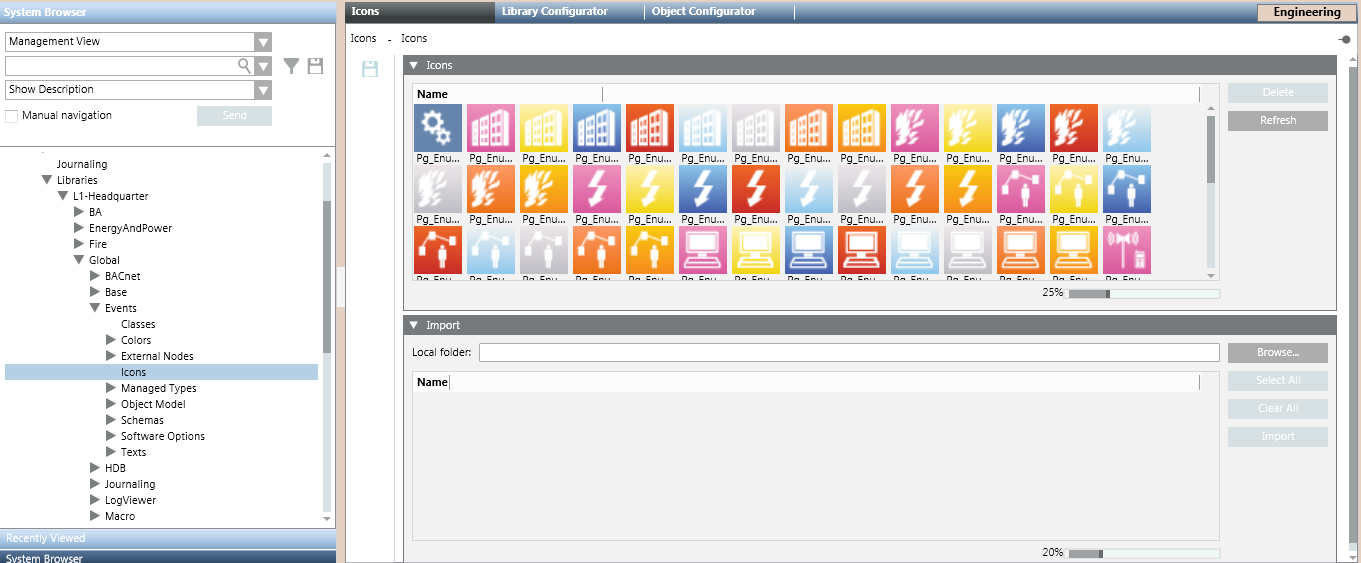

In Engineering mode, when you select the Icons block of a system library, the Icons tab displays expanders where you can manage existing icons, as well as upload additional ones. For instructions, see Configuring Icons in a Library.



The Icons library block under L1-Headquarter > Global > Events is basic configuration provided by Headquarter that can be modified by Headquarter experts and Customer Support only.
Depending on their allowed customization level, authorized experts can manage icons at L2-Region, L3-Country, or L4-Project level.



Icons Expander

The Icons expander displays the icon images already uploaded to this Icons library.



Icons Fields



Description

Name

Display the icons available for the selected Icons library.

Delete

Delete the icons selected in the list.

This button becomes available when at least one icon is selected.

Refresh

Refresh the icons area.

Slider

Enlarge/shrink the icons size.

Default size is 25%.

Import Expander

The Import expander provides controls for importing icon files (BMP, JPG, PNG, or XAML) from a local directory. The imported icons are stored at the following path: [Installation Drive]:\[Installation Folder]\[Project Name]\libraries\[library folder]\[library]\Icons.



Import Fields



Description

Local Folder

Display the path of the directory containing the icons.

Icons area

Display the icons included in the chosen directory. Each icon is also identified by a name.

Browse

Open the Browse for Folder dialog box, and select a specific directory containing the icons to import.

Select All

Select all the icons for the import.

Clear All

Unselect all the icons.

This button becomes available when at least one icon is selected.

Import

Start the import of the icons from the local folder.

This button becomes available when at least one icon is selected.

Slider

Enlarge/shrink the icons size.

Default size is 20%.
